BCM61B,215 - Nexperia

Description: Nexperia BCM61B,215 Dual NPN Transistor, 100 mA, 45 V, 4-Pin SOT-143B

Download BCM61B,215 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

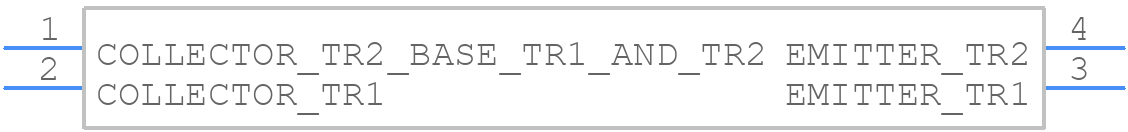

BCM61B,215 - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCM61B,215 - Nexperia PCB footprint - Other - Other - BCM61B,215-1
click to zoom
3D Models
BCM61B,215 - Nexperia - 3D model - Other - BCM61B,215-1
click to zoom

BCM61B,215 Details

  • Manufacturer Part Number:

    BCM61B,215

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-143

  • Pin Count:

    4

  • Manufacturer Package Code:

    SOT143B

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    CURRENT MIRROR

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

BCM61B,215 Frequently Asked Questions (FAQs)

  • Nexperia provides a recommended PCB layout in the application note AN11555, which includes guidelines for component placement, routing, and thermal management.
  • To optimize thermal performance, ensure good thermal conductivity between the device and the PCB, use a thermal pad or heat sink, and follow the recommended PCB layout guidelines. Additionally, reduce the power consumption and heat generation by optimizing the system design and reducing the operating frequency.
  • The BCM61B215 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power supply lines.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and identify the source of the issue. Check the power supply, clock, and reset signals, and ensure that the device is properly configured and initialized. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
  • The BCM61B215 is manufactured according to Nexperia's quality and reliability standards, which include ISO/TS 16949 and AEC-Q100. The device is also qualified according to the Automotive Electronics Council (AEC) standards for automotive applications.
