BCM856BS - Nexperia

Description: NEXPERIA - BCM856BS - TRANSISTOR,PNP/PNP MATCHED,SOT363

Download BCM856BS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

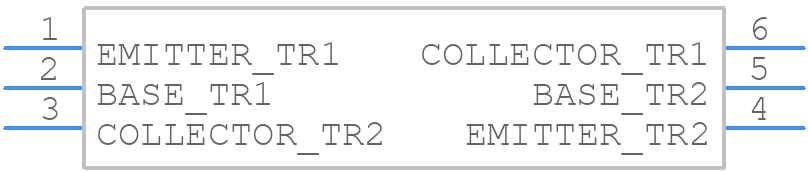

BCM856BS - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCM856BS - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom
3D Models
BCM856BS - Nexperia - 3D model - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom

BCM856BS Details

  • Manufacturer Part Number:

    BCM856BS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    175 MHz

BCM856BS Frequently Asked Questions (FAQs)

  • Nexperia recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation at high temperatures, Nexperia recommends following the recommended operating conditions, using a heat sink if necessary, and ensuring good thermal design and layout. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • The maximum allowed voltage on the input pins is the voltage rating of the device, which is 5.5V for the BCM856BS. Exceeding this voltage can cause damage to the device.
  • Nexperia recommends following proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected environment. Additionally, the device has built-in ESD protection, but it is not a substitute for proper ESD handling procedures.
  • Nexperia recommends following the JEDEC standard J-STD-020D for soldering the device. The recommended soldering profile is a peak temperature of 260°C, with a maximum time above 217°C of 30 seconds.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM856BS Overview

Use the download button to access the BCM856BS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM85, or try a keyword search, such as Small Signal Bipolar Transistors
