BCM856DS,115 - Nexperia

Description: Nexperia BCM856DS,115 Dual PNP Transistor, 100 mA, 65 V, 6-Pin SOT-457 (SC-74)

Download BCM856DS,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

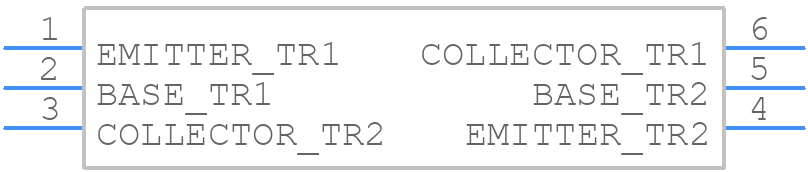

BCM856DS,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCM856DS,115 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT 457
click to zoom
3D Models
BCM856DS,115 - Nexperia - 3D model - SOT23 (6-Pin) - SOT 457
click to zoom

BCM856DS,115 Details

  • Manufacturer Part Number:

    BCM856DS,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    SC-74, SOT-457, TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    2.2 pF

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    0.38 W

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    175 MHz

  • VCEsat-Max:

    0.4 V

BCM856DS,115 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to ensure good heat dissipation.
  • Use a heat sink, ensure good airflow, and consider using a thermal interface material (TIM) to improve heat transfer. Also, follow the recommended operating conditions and derating guidelines.
  • The maximum allowed voltage on the enable pin (EN) is VCC + 0.3V. Exceeding this voltage may damage the device.
  • Yes, the BCM856DS,115 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions and guidelines for these applications.
  • Check the input voltage, enable pin (EN) voltage, and output voltage. Verify that the device is properly connected and that the input voltage is within the recommended range. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM856DS,115 Overview

Use the download button to access the BCM856DS,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM85, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
