BCM857BS - Nexperia

Description: NEXPERIA - BCM857BS - TRANSISTOR, MATCHED, SOT-363

Download BCM857BS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

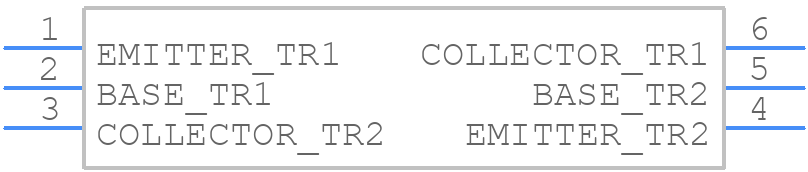

BCM857BS - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCM857BS - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom
3D Models
BCM857BS - Nexperia - 3D model - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom

BCM857BS Details

  • Manufacturer Part Number:

    BCM857BS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-88, SOT-363, TSSOP-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    2.2 pF

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    AEC-Q101; IEC-60134

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    175 MHz

  • VCEsat-Max:

    0.4 V

BCM857BS Frequently Asked Questions (FAQs)

  • Nexperia provides a recommended PCB layout in their application note AN11173, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The BCM857BS has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Nexperia recommends using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink or thermal ground plane.
  • The BCM857BS is rated for operation from -40°C to 125°C, but Nexperia recommends operating the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Nexperia recommends following good EMC design practices, such as using a shielded enclosure, minimizing loop areas, and using filtering and shielding components to reduce electromagnetic radiation and susceptibility.
  • Nexperia recommends following the JEDEC J-STD-020D.1 standard for soldering the BCM857BS, which includes guidelines for peak temperature, dwell time, and cooling rate to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM857BS Overview

Use the download button to access the BCM857BS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM85, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
