BCM857BV-7 - Diodes Incorporated

Description: Bipolar Transistors - BJT 45V Matched Pair PNP SS Trans -100mA

Download BCM857BV-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

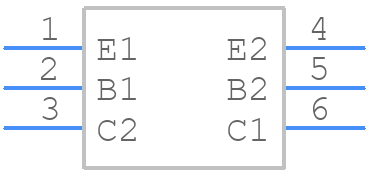

Symbol
BCM857BV-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
BCM857BV-7 - Diodes Incorporated PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT563
click to zoom
3D Models
BCM857BV-7 - Diodes Incorporated - 3D model - SO Transistor Flat Lead - SOT563
click to zoom

BCM857BV-7 Details

  • Manufacturer Part Number:

    BCM857BV-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    175 MHz

BCM857BV-7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BCM857BV-7 is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum equivalent series resistance (ESR) of 1 ohm.
  • The maximum current that the BCM857BV-7 can supply is 150mA.
  • To protect the BCM857BV-7 from overheating, ensure that the device is operated within the recommended operating temperature range of -40°C to 85°C, and provide adequate heat sinking and airflow.
  • Yes, the BCM857BV-7 is rated for operation up to 85°C, but the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's performance and consider additional thermal management measures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM857BV-7 Overview

Use the download button to access the BCM857BV-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM85, or try a keyword search, such as Small Signal Bipolar Transistors
