BCP5616QTA - Diodes Incorporated

BCP5616QTA Details

• Manufacturer Part Number:

  BCP5616QTA

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

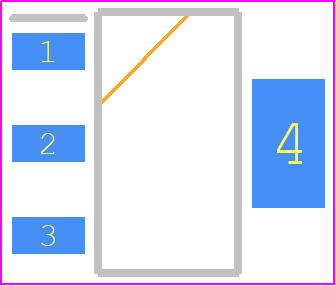

• Package Description:

  SOT-223, 4 PIN

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  4

• Case Connection:

  COLLECTOR

• Collector Current-Max (IC):

  1 A

• Collector-Base Capacitance-Max:

  25 pF

• Collector-Emitter Voltage-Max:

  80 V

• Configuration:

  SINGLE

• DC Current Gain-Min (hFE):

  25

• JESD-30 Code:

  R-PDSO-G4

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  NPN

• Power Dissipation-Max (Abs):

  2 W

• Reference Standard:

  AEC-Q101; IATF 16949

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Transition Frequency-Nom (fT):

  150 MHz

• VCEsat-Max:

  0.5 V
