A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, with multiple vias to dissipate heat effectively. A minimum of 2oz copper thickness is recommended.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the device. Avoid overheating the device.
The maximum allowed voltage on the input pin is 6V. Exceeding this voltage may damage the device. Ensure that the input voltage is within the recommended operating range to ensure reliable operation.
To handle ESD protection, ensure that the device is handled in an ESD-protected environment. Use ESD-protected workbenches, wrist straps, and packaging materials to prevent damage. Avoid touching the device pins or handling the device in a way that may generate static electricity.
The recommended operating temperature range for the BCR421UFD-7 is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCR421UFD-7 Overview

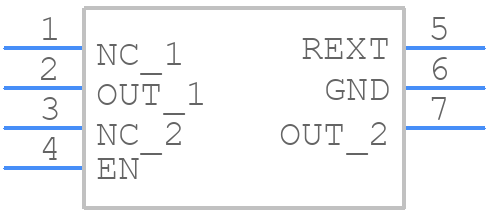

Use the download button to access the BCR421UFD-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCR42,
or try a keyword search, such as Display Drivers
