BCV61,235 - Nexperia

Description: Transistor Current Mirror 2 NPN (Dual) Current Mirror 30V 100mA Surface Mount SOT-143B

Download BCV61,235 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

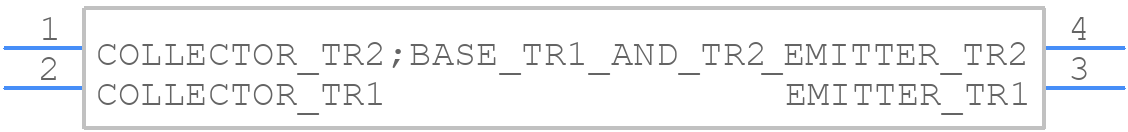

BCV61,235 - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCV61,235 - Nexperia PCB footprint - Other - Other - BCV61,235-2
click to zoom
3D Models
BCV61,235 - Nexperia - 3D model - Other - BCV61,235-2
click to zoom

BCV61,235 Details

  • Manufacturer Part Number:

    BCV61,235

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-143

  • Package Description:

    PLASTIC, SMD, 4 PIN

  • Pin Count:

    4

  • Manufacturer Package Code:

    SOT143B

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    1993-03-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    30 V

  • Configuration:

    CURRENT MIRROR

  • DC Current Gain-Min (hFE):

    110

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

  • VCEsat-Max:

    0.6 V

BCV61,235 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for BCV61,235 is -40°C to 150°C, although the datasheet only mentions a storage temperature range of -40°C to 150°C.
  • Nexperia recommends using ESD protection devices, such as diodes or TVS diodes, to protect the BCV61,235 from electrostatic discharge. Additionally, handling the device by the body or using an anti-static wrist strap can also help prevent ESD damage.
  • The maximum allowed voltage for BCV61,235 is 250V, although the datasheet only specifies a maximum repetitive peak reverse voltage of 200V. It's essential to ensure the device operates within the recommended voltage range to prevent damage or degradation.
  • While BCV61,235 is suitable for high-frequency applications, its performance may degrade above 100 kHz. It's recommended to evaluate the device's performance in your specific application and consider alternative devices if necessary.
  • To ensure reliability, follow Nexperia's recommended operating conditions, storage guidelines, and handling procedures. Additionally, perform thorough testing and validation of your design to ensure the device operates within its specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCV61,235 Overview

Use the download button to access the BCV61,235 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCV61, or try a keyword search, such as Small Signal Bipolar Transistors
