BCV62,215 - Nexperia

Description: PNP general-purpose double transistors 30V , 0.1A , 0.25W , 100 MHz , 150°C

Download BCV62,215 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

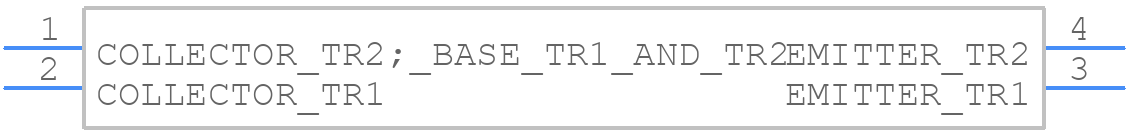

BCV62,215 - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCV62,215 - Nexperia PCB footprint - Other - Other - SOT143B_2025-1.2
click to zoom
3D Models
BCV62,215 - Nexperia - 3D model - Other - SOT143B_2025-1.2
click to zoom

BCV62,215 Details

  • Manufacturer Part Number:

    BCV62,215

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-143

  • Pin Count:

    4

  • Manufacturer Package Code:

    SOT143B

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    1997-09-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    30 V

  • Configuration:

    CURRENT MIRROR

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz
