BD-07PMMP-LC7001 - Amphenol

Description: Standard Circular Connector Ceres, Standard Size, Plastic, 5A, 07 pins, Male Connector, Male Contact, Circular, 2 Points Lock, PCB 180, Receptacle, IP67

Download BD-07PMMP-LC7001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BD-07PMMP-LC7001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

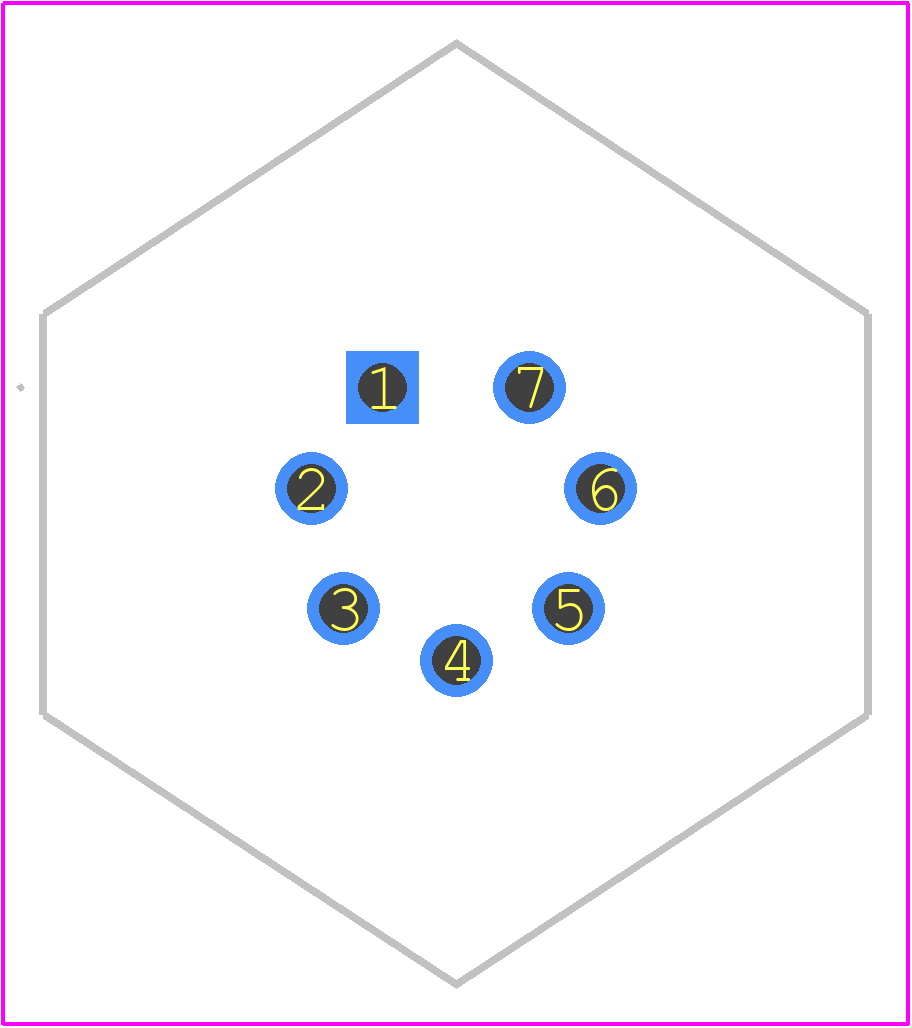

BD-07PMMP-LC7001 - Amphenol PCB footprint - Other - Other - BD-07PMMP-LC7001-2
click to zoom
3D Models
BD-07PMMP-LC7001 - Amphenol - 3D model - Other - BD-07PMMP-LC7001-2
click to zoom

BD-07PMMP-LC7001 Details

  • Manufacturer Part Number:

    BD-07PMMP-LC7001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

BD-07PMMP-LC7001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The mating cycle life of the BD-07PMMP-LC7001 connector is rated for a minimum of 500 mating cycles.
  • Yes, the BD-07PMMP-LC7001 connector is RoHS and REACH compliant, making it suitable for use in European Union (EU) and other regions with similar regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD-07PMMP-LC7001 Overview

Use the download button to access the BD-07PMMP-LC7001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD-07, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
