BD12 - LITTELFUSE

BD12 Details

• Manufacturer Part Number:

  BD12

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• Actuator Length:

  0.032 inch

• Actuator Material:

  GLASS FILLED NYLON

• Actuator Type:

  SLIDE TYPE

• Additional Feature:

  ROHS COMPLIANT 16 PCS/TUBE

• Body Breadth:

  9.65 mm

• Body Height:

  6.72 mm

• Body Length or Diameter:

  32.51 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  .1A@5VDC

• Contact Resistance:

  0.05 mΩ

• Contact Voltage(DC)-Max:

  5 V

• Dielectric Withstand Volts:

  500VRMS V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  GOLD OVER NICKEL

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

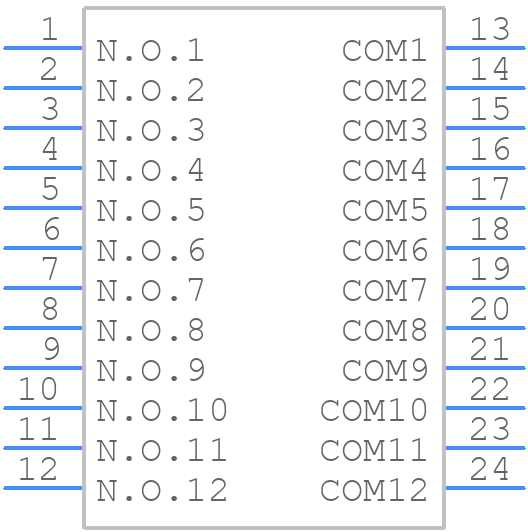

• Number of Switch Sections:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

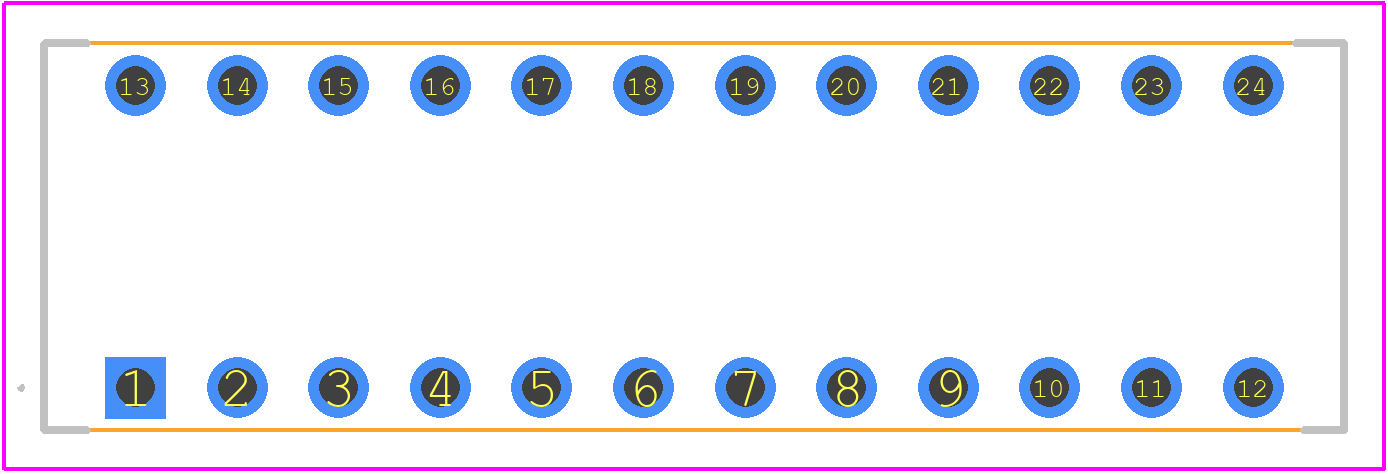

• PCB Hole Count:

  24

• Packing Method:

  TUBE

• Solderability:

  MIL-STD

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPST

• Switch Type:

  SLIDE DIP SWITCH

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Length:

  0.141 inch

• Terminal Material:

  PHOSPHOR BRONZE

• Termination Type:

  SOLDER

• Washability:

  WATER/STEAM
