BD16912EFV-CE2 - ROHM Semiconductor

Description: Motor / Motion / Ignition Controllers & Drivers 40V/3A H-Bridge Driver for Auto

Download BD16912EFV-CE2 Model

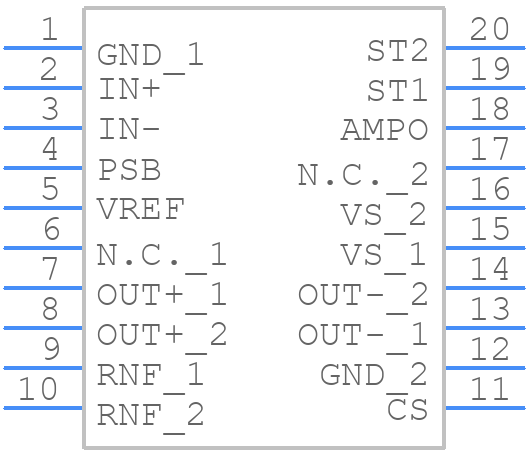

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

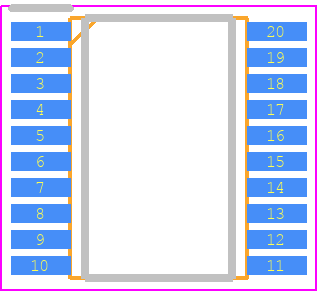

BD16912EFV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-B20
click to zoom
3D Models
BD16912EFV-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSSOP-B20
click to zoom

BD16912EFV-CE2 Details

  • Manufacturer Part Number:

    BD16912EFV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Date Of Intro:

    2018-06-05

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD16912EFV-CE2 Frequently Asked Questions (FAQs)

  • ROHM provides a recommended PCB layout in the application note AN11984, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output current, and ripple current requirements. ROHM recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN11984 for more details.
  • The maximum output current of the BD16912EFV-CE2 is 1.5A, but it's recommended to derate the output current based on the ambient temperature and thermal design. Refer to the thermal derating curve in the datasheet to determine the maximum safe output current for your specific application.
  • To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet and application notes. Additionally, make sure to decouple the input and output pins with suitable capacitors, and avoid long traces and loops that can cause oscillations.
  • The typical dropout voltage of the BD16912EFV-CE2 is around 0.5V, but it can vary depending on the output current and input voltage. Refer to the datasheet for the dropout voltage vs. output current characteristic curve.
