A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a thermal relief pattern under the IC, and to connect the thermal pad to a large copper area on the bottom layer to dissipate heat efficiently.
To ensure stable operation with a high-impedance input source, it is recommended to add a buffer capacitor (e.g., 10nF) between the input pin and GND, and to use a low-ESR output capacitor (e.g., 10uF) to reduce output voltage ripple.
The maximum allowed voltage on the EN pin is 6V, exceeding which may cause damage to the internal circuitry. It is recommended to use a voltage divider or a level shifter if the control signal exceeds 6V.
While the BD1HC500FVM-CTR is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments. Consult the datasheet and application notes for guidance.
To minimize EMI, use a shielded inductor, keep the input and output capacitors close to the IC, and use a ground plane to reduce radiation. Additionally, consider using a common-mode choke or a ferrite bead on the input lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD1HC500FVM-CTR Overview

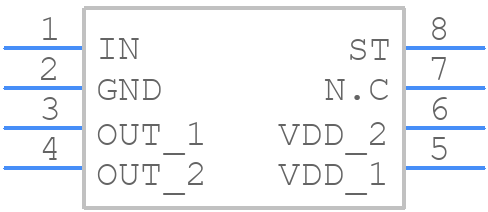

Use the download button to access the BD1HC500FVM-CTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD1HC,
or try a keyword search, such as Peripheral Drivers
