BD2040J50100AHF footprint, schematic symbol and 3D model by ANAREN

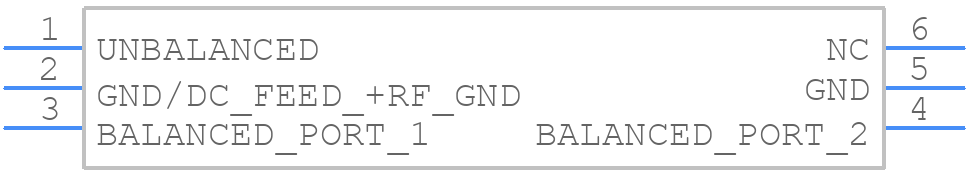

Symbol

PCB Footprints

3D Models

BD2040J50100AHF Details

The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
Proper thermal management can be achieved by providing a thermal path from the device to a heat sink or a metal core PCB, and ensuring good airflow around the device. The thermal resistance of the device is specified in the datasheet.
The maximum power handling capability of the BD2040J50100AHF is 50W, but it's recommended to derate the power handling to ensure reliable operation and to prevent overheating.
Yes, the BD2040J50100AHF can be used in a push-pull configuration, but it's recommended to consult with Anaren Microwave's application engineers to ensure proper design and implementation.
The recommended impedance matching network for the BD2040J50100AHF can be found in the Anaren Microwave application note AN-115, which provides guidelines for impedance matching and tuning.

Expert Contribution

System Verified

Community Approved

Use the download button to access the BD2040J50100AHF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BD204, or try a keyword search, such as RF Transformers
