Part Image

BD2606MVV-E2 - ROHM Semiconductor

Description: LED Lighting Drivers 6 Ch LED Dr w/64 Dim Steps I2C

Download ECAD Model

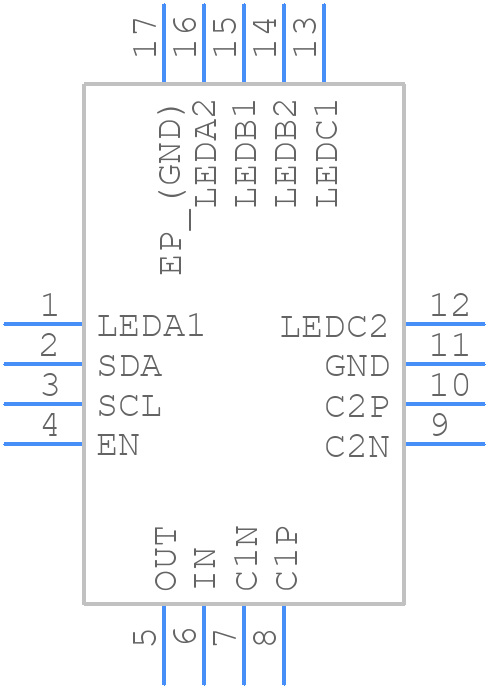

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

BD2606MVV-E2 - ROHM Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SQFN016V4040
click to zoom

3D Models

BD2606MVV-E2 - ROHM Semiconductor  - 3D model - Quad Flat No-Lead - SQFN016V4040
click to zoom

BD2606MVV-E2 Details

  • Manufacturer Part Number:

    BD2606MVV-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN, LCC16,.16SQ,25

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    ROHM Semiconductor

  • Risk Rank:

    1.79

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • YTEOL:

    7.52

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supplies:

    3/5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Subcategory:

    Display Drivers

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

  • fmax-Min:

    0.1 MHz

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

BD2606MVV-E2 Overview

Use the download button to access the BD2606MVV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD260, or try a keyword search, such as Display Drivers
