BD37033FV-ME2 - ROHM Semiconductor

Description: ROHM - BD37033FV-ME2 - Audio Control, Audio Processor, 7V to 9.5V, I2C, SSOP, 28 Pins, -40 °C

Download BD37033FV-ME2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

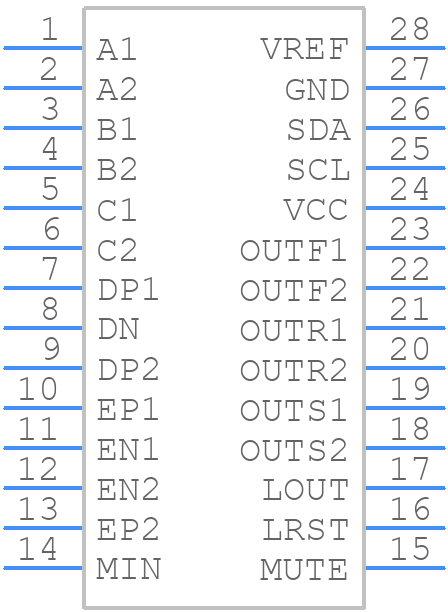

BD37033FV-ME2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD37033FV-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B28
click to zoom
3D Models
BD37033FV-ME2 - ROHM Semiconductor - 3D model - Small Outline Packages - SSOP-B28
click to zoom

BD37033FV-ME2 Details

  • Manufacturer Part Number:

    BD37033FV-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.35 mm

  • Supply Voltage-Max (Vsup):

    9.5 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.6 mm

BD37033FV-ME2 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Use an output capacitor with an ESR of 10 ohms or less. Add a 1-10nF ceramic capacitor in parallel with the output capacitor to improve stability.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V to ensure reliable operation and prevent damage to the IC.
  • The IC is rated for operation up to 105°C, but the maximum junction temperature is 125°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • The output voltage can be adjusted by changing the resistive divider ratio of the FB pin. Use the formula in the datasheet to calculate the required resistor values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD37033FV-ME2 Overview

Use the download button to access the BD37033FV-ME2 schematic symbol, PCB footprint, and 3D model.
