ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure stable operation with a high-ESR output capacitor, ROHM recommends adding a 1nF to 10nF ceramic capacitor in parallel with the output capacitor to reduce the overall ESR. Additionally, the output capacitor should be placed close to the IC to minimize parasitic inductance.
The maximum allowed voltage on the EN pin is 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the EN pin voltage does not exceed the IC's supply voltage (VIN) to prevent damage.
The BD4271FP2-CE2 is rated for operation up to 105°C, but ROHM recommends derating the output current and power dissipation to ensure reliable operation. Consult the datasheet and ROHM's application notes for specific guidelines on high-temperature operation.
To troubleshoot oscillations or instability issues, check the PCB layout for parasitic inductance and capacitance, ensure proper decoupling of the input and output capacitors, and verify that the output capacitor meets the recommended specifications. Additionally, check for noise on the VIN and EN pins, and ensure that the IC is properly grounded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD4271FP2-CE2 Overview

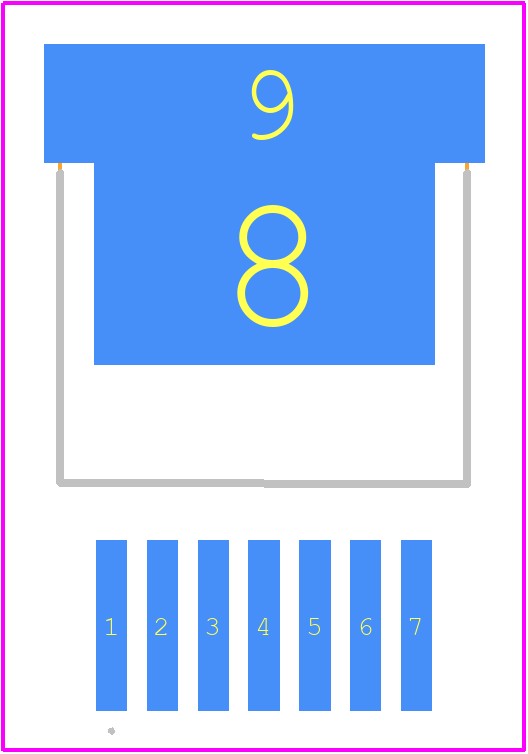

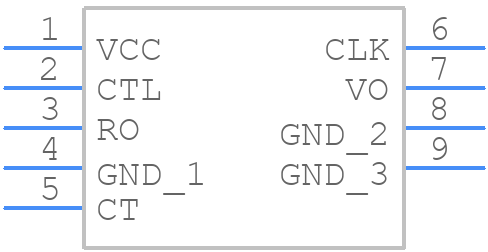

Use the download button to access the BD4271FP2-CE2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BD427,
or try a keyword search, such as Linear Regulator ICs
