BD433M2WEFJ-CE2 - ROHM Semiconductor

Description: LDO Voltage Regulators 200mA 3.3V or 5.0V out LDO Reg

Download BD433M2WEFJ-CE2 Model

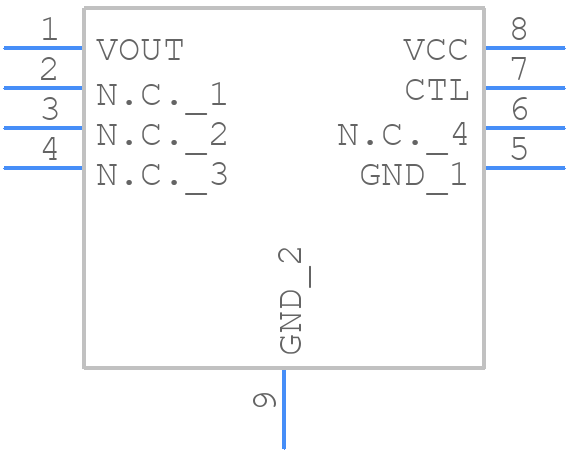

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

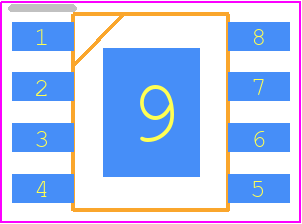

BD433M2WEFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-4
click to zoom
3D Models
BD433M2WEFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8-4
click to zoom

BD433M2WEFJ-CE2 Details

  • Manufacturer Part Number:

    BD433M2WEFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Dropout Voltage1-Max:

    0.45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.16 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    4.2%

  • Width:

    3.9 mm

BD433M2WEFJ-CE2 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the input capacitor (CIN) is placed close to the VIN pin, and the output capacitor (COUT) is placed close to the VOUT pin. Also, use a low-ESR capacitor for COUT.
  • The maximum ambient temperature for reliable operation is 85°C. However, it's recommended to derate the output current at higher temperatures to ensure reliability.
  • While it's possible to use a different inductor value, it's not recommended. The recommended inductor value is optimized for the IC's internal compensation network. Using a different value may affect stability and performance.
  • Check the input voltage, output load, and PCB layout. Ensure that the input capacitor and output capacitor are of sufficient value and placed correctly. Also, verify that the inductor is of the recommended value and type.
