BD450M2EFJ-CE2 - ROHM Semiconductor

Description: LDO Voltage Regulators 200mA 3.3V or 5.0V out LDO Reg

Download BD450M2EFJ-CE2 Model

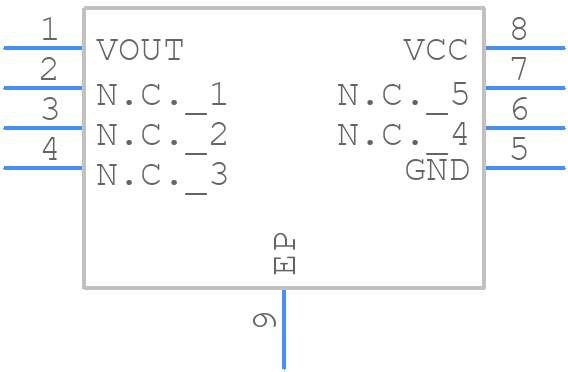

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

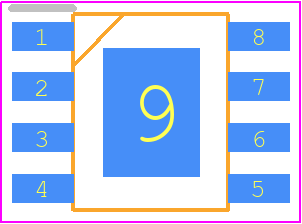

BD450M2EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-4
click to zoom
3D Models
BD450M2EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8-4
click to zoom

BD450M2EFJ-CE2 Details

  • Manufacturer Part Number:

    BD450M2EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Dropout Voltage1-Max:

    0.35 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    5.8 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.8 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    4%

  • Width:

    3.9 mm

BD450M2EFJ-CE2 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a large copper area on the bottom layer as a heat sink, connected to the thermal pad of the IC. This helps to dissipate heat efficiently.
  • To ensure stable operation with a high-ESR output capacitor, it's recommended to add a small ceramic capacitor (e.g., 1uF) in parallel with the output capacitor to improve the overall ESR and reduce oscillation risk.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the IC.
  • While the BD450M2EFJ-CE2 is rated for operation up to 105°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
