BD450M2WEFJ-CE2 - ROHM Semiconductor

Description: LDO Voltage Regulators 200mA 3.3V or 5.0V out LDO Reg

Download BD450M2WEFJ-CE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

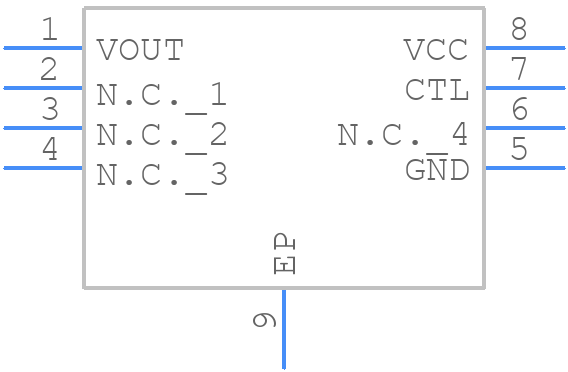

BD450M2WEFJ-CE2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

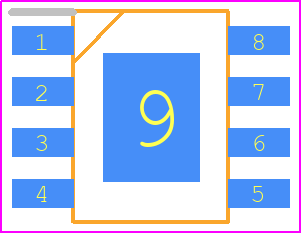

BD450M2WEFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8(t_1)
click to zoom
3D Models
BD450M2WEFJ-CE2 - ROHM Semiconductor - 3D model - Small Outline Packages - HTSOP-J8(t_1)
click to zoom

BD450M2WEFJ-CE2 Details

  • Manufacturer Part Number:

    BD450M2WEFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Dropout Voltage1-Max:

    0.35 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    5.8 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.8 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    4%

  • Width:

    3.9 mm

BD450M2WEFJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern under the IC to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
  • To ensure stable operation with a high-ESR output capacitor, add a 1-2nF ceramic capacitor in parallel with the output capacitor to reduce the effective ESR. Additionally, consider using a capacitor with a lower ESR or adding a damping resistor in series with the output capacitor.
  • ROHM recommends using a 10-22uF ceramic capacitor with an X5R or X7R dielectric for the input capacitor. This ensures stable operation and minimizes the risk of oscillation.
  • To protect the regulator from input voltage transients and surges, consider adding a TVS (Transient Voltage Suppressor) diode or a varistor in parallel with the input capacitor. This will help clamp the input voltage and prevent damage to the regulator.
  • ROHM recommends using a 10-47uF ceramic capacitor with an X5R or X7R dielectric for the output capacitor. This ensures stable operation and minimizes the risk of oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD450M2WEFJ-CE2 Overview

Use the download button to access the BD450M2WEFJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD450, or try a keyword search, such as Linear Regulator ICs
