BD450U2EFJ-CE2 - ROHM Semiconductor

Description: Qualified for Automotive Applications ◼ Wide Temperature Range: -40 °C to +150 °C ◼ Wide Operating Input Range: 3.0 V to 42 V ◼ Low Quiescent Current: 40 μA (Typ.) ◼ Output Current: 200 mA ◼ High Output Voltage Accuracy: ±2 % ◼ Output Voltage: 3.3 V or 5.0 V (Typ.) ◼ Enable Input (Only W: Includes Enable Input) ◼ Over Current Protection (OCP) ◼ Thermal Shutdown Protection (TSD) ◼ AEC-Q100 Qualified (Note1) (Note1:Grade1)

Download BD450U2EFJ-CE2 Model

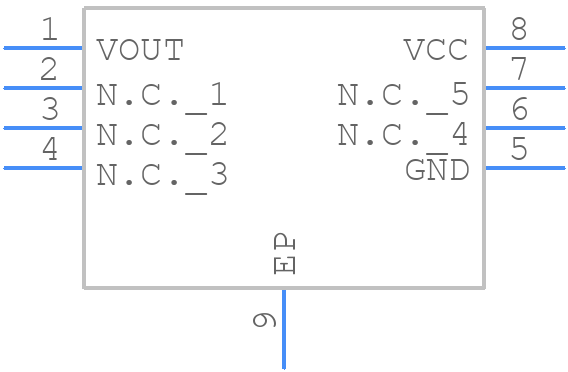

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

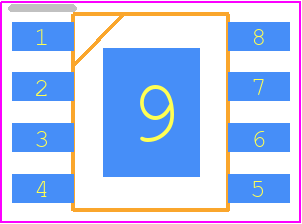

BD450U2EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-4
click to zoom
3D Models
BD450U2EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8-4
click to zoom

BD450U2EFJ-CE2 Details

  • Manufacturer Part Number:

    BD450U2EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    HTSOP-J8, 8-PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.2 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    5.8 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.03%

  • Load Regulation-Max(%):

    0.03%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.8 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSOP

  • Package Equivalence Code:

    TSOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, EMBOSSED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    4%

  • Width:

    3.9 mm

BD450U2EFJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias to the bottom layer to ensure efficient heat dissipation. A minimum of 3mm clearance around the device is also recommended to prevent thermal interference.
  • To ensure stable operation with high input voltage ripple, ROHM recommends using a high-quality input capacitor with low ESR and a sufficient capacitance value. Additionally, a voltage regulator with a high PSRR (Power Supply Rejection Ratio) can help to further reduce the impact of input voltage ripple.
  • The maximum allowed output current for the BD450U2EFJ-CE2 is 2A. However, it's recommended to derate the output current based on the ambient temperature and the desired junction temperature to ensure reliable operation.
  • The BD450U2EFJ-CE2 is rated for operation up to 125°C junction temperature. However, ROHM recommends derating the output current and voltage based on the ambient temperature to ensure reliable operation. Consult the datasheet for detailed derating information.
  • The input capacitor value depends on the input voltage, output current, and desired ripple voltage. ROHM recommends using the following formula: Cin = (Iout x ΔVout) / (fsw x ΔVin), where Cin is the input capacitance, Iout is the output current, ΔVout is the desired output voltage ripple, fsw is the switching frequency, and ΔVin is the input voltage ripple.
