BD45302G-TR - ROHM Semiconductor

Description: Voltage Detector with Fixed Delay Time: ROHM's BD45xxxG and BD46xxxG series of reset ICs utilize CMOS processes for low current consumption and high accuracy. The built-in counter timer delay circuit eliminates the need to set the delay time via external capacitor. The extensive lineup includes both Nch Open Drain and CMOS output types in a wide range of detection voltages (from 2.3V to 4.8V, in 0.1V steps), enabling selection of the ideal solution based on customer requirements. A total of 156 models are o

Download BD45302G-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

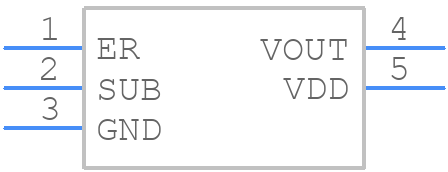

BD45302G-TR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD45302G-TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5
click to zoom
3D Models
BD45302G-TR - ROHM Semiconductor - 3D model - SOT23 (5-Pin) - SSOP5
click to zoom

BD45302G-TR Details

  • Manufacturer Part Number:

    BD45302G-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Supply Current-Max (Isup):

    0.00255 mA

  • Supply Voltage-Min (Vsup):

    0.95 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Width:

    1.6 mm

BD45302G-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad of the IC, and to use thermal vias to dissipate heat to the top layer. Additionally, keeping the thermal pad away from other components and traces can help reduce thermal resistance.
  • To ensure stable operation with a high-ESR output capacitor, it's recommended to add a small ceramic capacitor (e.g. 1uF) in parallel with the high-ESR capacitor to improve the overall ESR and reduce the risk of oscillation.
  • The maximum allowed voltage on the EN pin is 6V, exceeding this voltage may cause damage to the IC. It's recommended to use a voltage divider or a level shifter if the enable signal is coming from a higher voltage domain.
  • The BD45302G-TR is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's recommended to use a heat sink or a thermal interface material to ensure reliable operation in high-temperature environments.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (f * C), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and C is the output capacitance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD45302G-TR Overview

Use the download button to access the BD45302G-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD453, or try a keyword search, such as Power Management Circuits
