BD45355G-TR - ROHM Semiconductor

Description: Counter Timer Built-in CMOS Voltage Detector IC

Download BD45355G-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

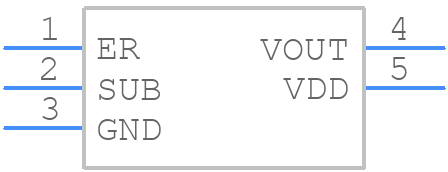

PCB Footprints
BD45355G-TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5
click to zoom
3D Models
BD45355G-TR - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - SSOP5
click to zoom

BD45355G-TR Details

  • Manufacturer Part Number:

    BD45355G-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Supply Current-Max (Isup):

    0.00255 mA

  • Supply Voltage-Min (Vsup):

    0.95 V

  • Supply Voltage-Nom (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Width:

    1.6 mm

BD45355G-TR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BD45355G-TR is -40°C to 125°C.
  • To ensure the stability of the output voltage, it's recommended to use a ceramic capacitor with a capacitance value of 1μF or more for the output capacitor (COUT) and to place it as close to the VOUT pin as possible.
  • The maximum input voltage that the BD45355G-TR can handle is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the BD45355G-TR can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The quiescent current of the BD45355G-TR is typically around 1.5mA, but it can vary depending on the input voltage and output load conditions.
