A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the GND pin, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layers as thin as possible and using a thermal interface material can also help.
To ensure stable operation with a high-ESR output capacitor, it's recommended to add a 1-10nF ceramic capacitor in parallel with the output capacitor to reduce the ESR. Additionally, increasing the output capacitor value or using a low-ESR capacitor can also help.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
The BD4825G-TR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD4825G-TR Overview

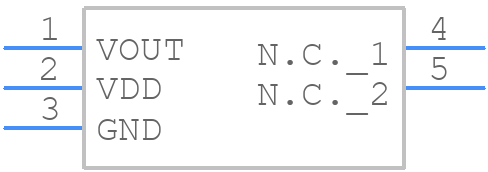

Use the download button to access the BD4825G-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD482,
or try a keyword search, such as Power Management Circuits
