ROHM recommends a thermal pad size of 2.5mm x 2.5mm with a minimum of 10 thermal vias (0.3mm diameter) to achieve optimal thermal performance. Additionally, a solid copper plane on the bottom layer can help to dissipate heat efficiently.
To ensure stable operation with a high-ESR output capacitor, ROHM recommends using a capacitor with an ESR of 10Ω or less, and adding a 1nF to 10nF ceramic capacitor in parallel to the output capacitor to improve stability.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage remains within the specified range.
The BD49L34G-TL is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. ROHM recommends derating the output current and voltage according to the temperature derating curve provided in the datasheet.
The power dissipation of the BD49L34G-TL can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. ROHM recommends using the maximum values for Vin, Vout, Iout, and Iq to ensure a safe margin.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD49L34G-TL Overview

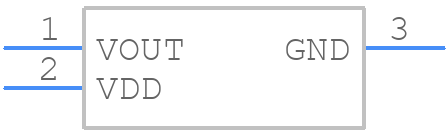

Use the download button to access the BD49L34G-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD49L,
or try a keyword search, such as Power Management Circuits
