BD5228G-TR - ROHM Semiconductor

Description: ROHM - BD5228G-TR - VOLTAGE DETECTOR, 800NA, 10V, SOT-23-5

Download BD5228G-TR Model

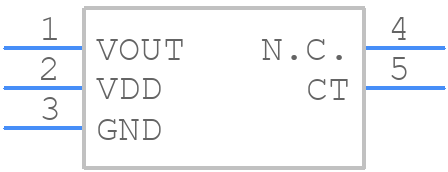

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD5228G-TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5_1
click to zoom
3D Models
BD5228G-TR - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - SSOP5_1
click to zoom

BD5228G-TR Details

  • Manufacturer Part Number:

    BD5228G-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:Y;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC
