BD5230G-TR - ROHM Semiconductor

Description: ROHM BD5230G-TR, Voltage Detector, 2.3 → 6 V 5-Pin, SSOP

Download BD5230G-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

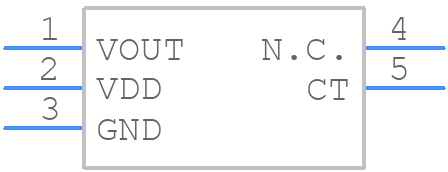

Symbol
BD5230G-TR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD5230G-TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5_1
click to zoom
3D Models
BD5230G-TR - ROHM Semiconductor - 3D model - SOT23 (5-Pin) - SSOP5_1
click to zoom

BD5230G-TR Details

  • Manufacturer Part Number:

    BD5230G-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    1

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:Y;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Width:

    1.6 mm

BD5230G-TR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure a minimum of 1mm clearance around the IC for airflow and heat dissipation.
  • Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Also, ensure the input capacitor is rated for the maximum input voltage and has a low ESR.
  • The BD5230G-TR is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a minimum of 10°C margin.
  • Yes, but ensure the PCB is securely mounted and the IC is properly soldered. Apply a conformal coating to protect the PCB from moisture and vibration. Also, consider using a vibration-resistant capacitor for the output filter.
  • Use a shielded inductor, keep the PCB layout compact, and ensure a solid ground plane. Also, consider adding EMI filters or ferrite beads to the input and output lines.
