- Part Number BD60223FP-E2
- Manufacturer ROHM Semiconductor
- Pin Count 27
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - HSOP25_2022
- Released Date Sep 9, 2022
- Last Modified Date Jul 31, 2025 9:33 AM UTC
- Pinout / Pin List Click Here (Member Only)
BD60223FP-E2 Details
-
Manufacturer Part Number:
BD60223FP-E2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
HSOP-25
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2018-03-23
-
Manufacturer:
ROHM Semiconductor
-
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
-
JESD-30 Code:
R-PDSO-G25
BD60223FP-E2 Frequently Asked Questions (FAQs)
-
ROHM provides a recommended PCB layout in the application note AN12242, which includes guidelines for component placement, thermal vias, and copper pouring to ensure optimal thermal performance and minimize electromagnetic interference.
-
The input capacitor selection depends on the input voltage, output voltage, and output current. ROHM recommends using a low-ESR capacitor with a capacitance value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. Refer to the application note AN12242 for more details.
-
The maximum ambient temperature for the BD60223FP-E2 is 85°C, but it can be derated to 70°C for long-term reliability. It's essential to consider the thermal design and heat dissipation to ensure the device operates within the specified temperature range.
-
The BD60223FP-E2 is not designed for high-humidity environments. ROHM recommends using the device in environments with a relative humidity of 60% or less. If high humidity is unavoidable, consider using conformal coating or other protection methods to prevent moisture-related issues.
-
ROHM provides a troubleshooting guide in the application note AN12242, which covers common issues such as output voltage deviation, oscillation, and overheating. It's essential to follow the recommended debugging procedure and check the PCB layout, component selection, and input/output connections.
Trust Checks
Community Provided
System Verified
Community Approved
BD60223FP-E2 Overview

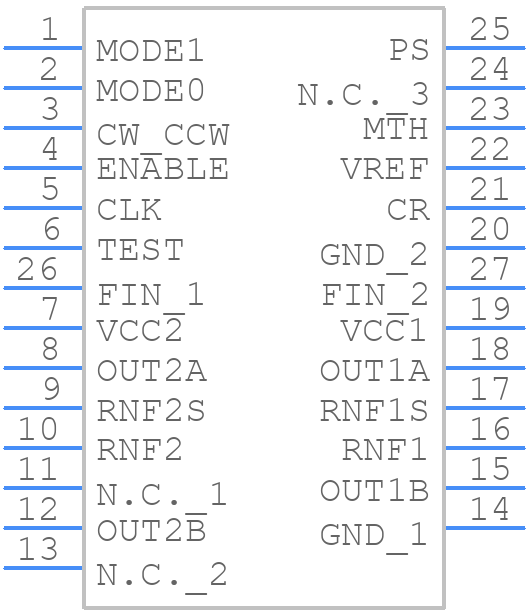

Use the download button to access the BD60223FP-E2 schematic symbol, PCB footprint, and 3D model.
