BD62105AFVM-TR - ROHM Semiconductor

Description: ROHM BD62105AFVM-TR Motor Driver IC 8-Pin, MSOP

Download BD62105AFVM-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

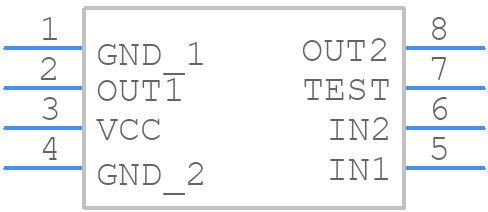

BD62105AFVM-TR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD62105AFVM-TR - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - msop8
click to zoom
3D Models
BD62105AFVM-TR - ROHM Semiconductor - 3D model - Small Outline Packages - msop8
click to zoom

BD62105AFVM-TR Details

  • Manufacturer Part Number:

    BD62105AFVM-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2017-08-24

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2.8 mm

BD62105AFVM-TR Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to decouple the input voltage with a capacitor close to the device.
  • The maximum ambient temperature for the BD62105AFVM-TR is 85°C, but it's recommended to derate the device's power dissipation to ensure reliable operation.
  • Yes, the BD62105AFVM-TR is suitable for high-reliability applications, as it's built with a robust design and has undergone rigorous testing to ensure its reliability.
  • The BD62105AFVM-TR has built-in overcurrent protection and thermal shutdown, but it's still recommended to add external protection circuits, such as fuses or PTC resistors, to ensure the device's safety.
