A thermal pad is recommended under the IC, and a solid ground plane on the bottom layer can help to dissipate heat. Additionally, keeping the thermal vias small and numerous can improve thermal performance.
To ensure stable output voltage regulation, it's essential to follow the recommended capacitor values and types, and to place the input and output capacitors close to the IC. Additionally, a low-ESR capacitor is recommended for the output capacitor.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the IC.
While the BD6212FP-E2 is rated for operation up to 105°C, it's essential to consider the power dissipation and thermal design to ensure reliable operation in high-temperature environments. A heat sink or thermal pad may be necessary to maintain a safe junction temperature.
To troubleshoot issues with the BD6212FP-E2, start by checking the input voltage, output voltage, and current consumption. Verify that the capacitors meet the recommended specifications, and check for any signs of overheating or physical damage to the IC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD6212FP-E2 Overview

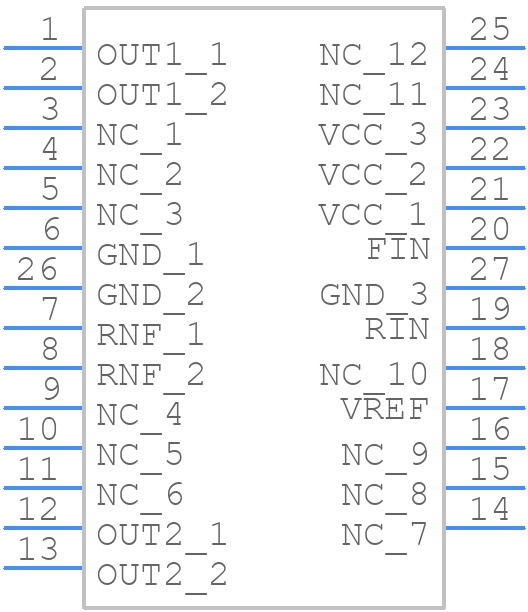

Use the download button to access the BD6212FP-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD621,
or try a keyword search, such as Motion Control Electronics
