- Part Number BD6220F-E2
- Manufacturer ROHM Semiconductor
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP8
- Released Date Mar 5, 2018
- Last Modified Date Jul 29, 2025 1:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BD6220F-E2 Details
-
Manufacturer Part Number:
BD6220F-E2
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
11 Weeks
-
Manufacturer:
ROHM Semiconductor
BD6220F-E2 Frequently Asked Questions (FAQs)
-
A good PCB layout for the BD6220F-E2 involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
-
The BD6220F-E2 can handle a maximum input voltage of 18V. However, it's recommended to operate the IC within the specified input voltage range of 7V to 15V for optimal performance and reliability.
-
To protect the BD6220F-E2 from overheating, it's essential to provide adequate heat dissipation. This can be achieved by attaching a heat sink to the IC, using a thermal interface material, and ensuring good airflow around the device. Additionally, the IC should be operated within the specified temperature range of -40°C to 85°C.
-
Yes, the BD6220F-E2 can be used in high-temperature applications up to 85°C. However, the IC's performance and reliability may degrade at higher temperatures. It's essential to follow the recommended operating conditions and take necessary precautions to ensure the IC's reliability and longevity.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
BD6220F-E2 Overview

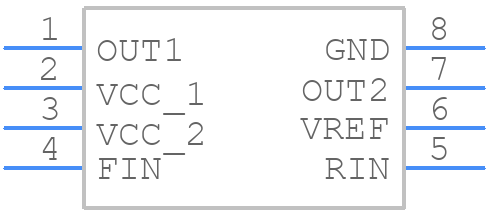

Use the download button to access the BD6220F-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD622,
or try a keyword search, such as Motion Control Electronics
