BD62220AEFV-E2 - ROHM Semiconductor

Description: ROHM BD62220AEFV-E2, , Brushed Motor Driver IC 28-Pin, HTSSOP-B

Download BD62220AEFV-E2 Model

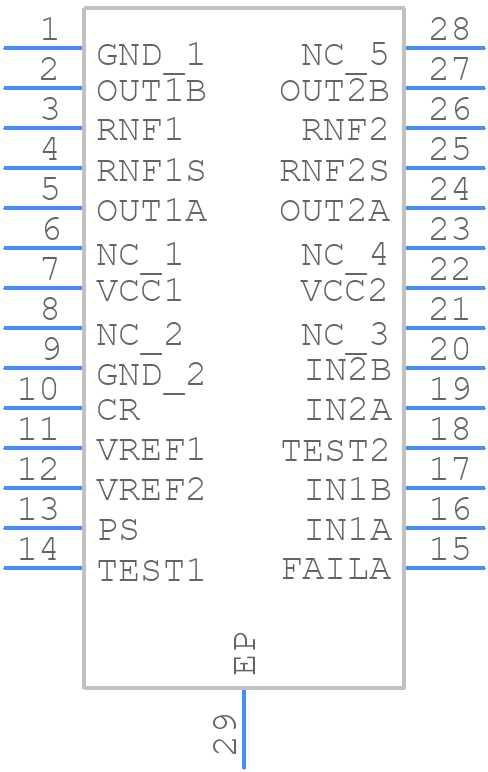

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD62220AEFV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-B28_1
click to zoom
3D Models
BD62220AEFV-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSSOP-B28_1
click to zoom

BD62220AEFV-E2 Details

  • Manufacturer Part Number:

    BD62220AEFV-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD62220AEFV-E2 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a soft-start circuit to limit the inrush current during power-up, and ensure that the input voltage rises slowly (e.g., 10ms) to prevent voltage spikes. During power-down, ensure that the output voltage decays slowly to prevent back-EMF.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the device's stability and reliability.
  • Yes, but with derating. The device is rated for operation up to 105°C, but the output current should be derated by 50% above 85°C to ensure reliable operation.
  • Check the PCB layout for parasitic inductance and capacitance, ensure that the input and output capacitors are properly selected, and verify that the feedback loop is properly compensated. Use an oscilloscope to observe the output voltage and current waveforms.
