BD6222FP-E2 - ROHM Semiconductor

Description: Motor / Motion / Ignition Controllers & Drivers H-BRIDGE 18V max 1 Chan 2.0A 1.0ohm

Download BD6222FP-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

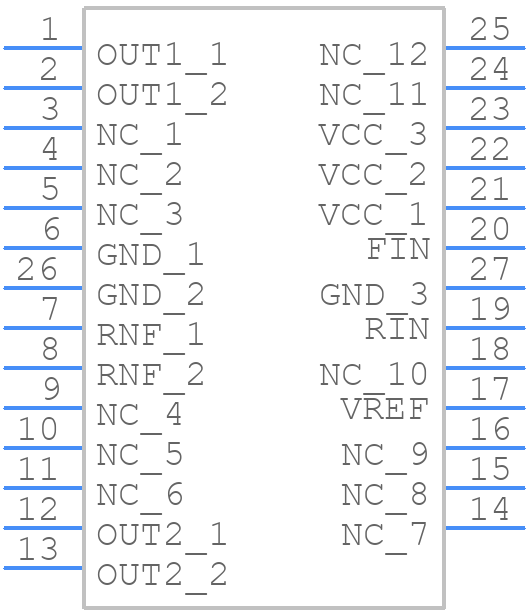

BD6222FP-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD6222FP-E2 - ROHM Semiconductor PCB footprint - Other - Other - BD6222FP-E2-3
click to zoom
3D Models
BD6222FP-E2 - ROHM Semiconductor - 3D model - Other - BD6222FP-E2-3
click to zoom

BD6222FP-E2 Details

  • Manufacturer Part Number:

    BD6222FP-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    25

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G25

  • Length:

    13.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP32,.3,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.11 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    5.4 mm

BD6222FP-E2 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC to improve heat dissipation. A 2-layer or 4-layer PCB with a solid ground plane is also recommended to reduce thermal resistance.
  • Ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value (at least 10uF) and ESR (less than 1 ohm) to maintain stability.
  • The maximum ambient temperature for reliable operation is 85°C, but it's recommended to keep it below 70°C for optimal performance and reliability.
  • While ceramic capacitors can be used, they may not provide the same level of stability as electrolytic capacitors due to their lower ESR. If using a ceramic capacitor, ensure it has a high capacitance value (at least 22uF) and a low ESR (less than 1 ohm).
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range. Additionally, consider using a TVS diode or a zener diode to protect against overvoltage conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD6222FP-E2 Overview

Use the download button to access the BD6222FP-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD622, or try a keyword search, such as Motion Control Electronics
