BD6236FM-E2 - ROHM Semiconductor

Description: Motor Driver Power MOSFET On/Off 28-HSOP-M Voltage - Supply 6V ~ 32V Current 1A Operating Temperature -40°C ~ 150°C (TJ)

Download BD6236FM-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

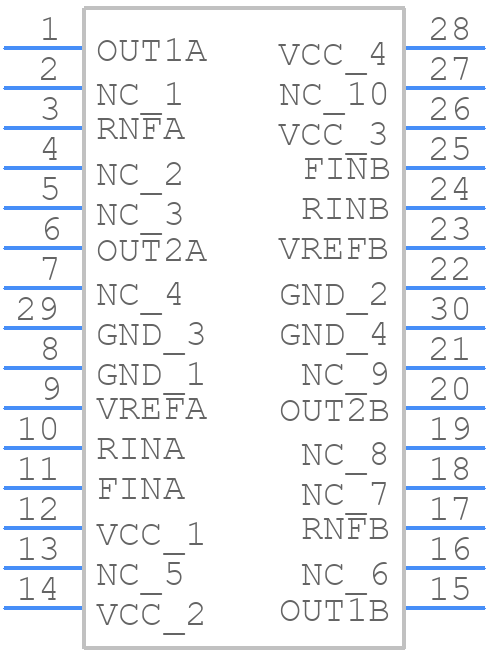

BD6236FM-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

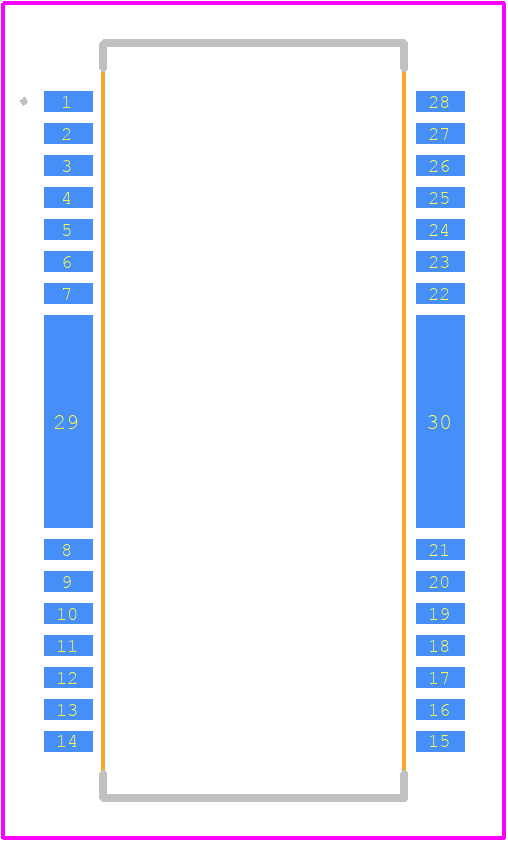

BD6236FM-E2 - ROHM Semiconductor PCB footprint - Other - Other - HSOP-M28_2025-1
click to zoom

BD6236FM-E2 Details

  • Manufacturer Part Number:

    BD6236FM-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.8

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    18.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP28/42,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    3.5 mA

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

BD6236FM-E2 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • To ensure stable output voltage regulation, it is recommended to use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Additionally, the input capacitor should be placed close to the VIN pin to reduce noise and ripple.
  • The maximum input voltage that can be applied to the BD6236FM-E2 is 18V. Exceeding this voltage may cause damage to the device.
  • The device has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it is recommended to add external protection components such as fuses or PTC thermistors to prevent damage from excessive current or heat.
  • The BD6236FM-E2 is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage according to the temperature derating curve in the datasheet.
