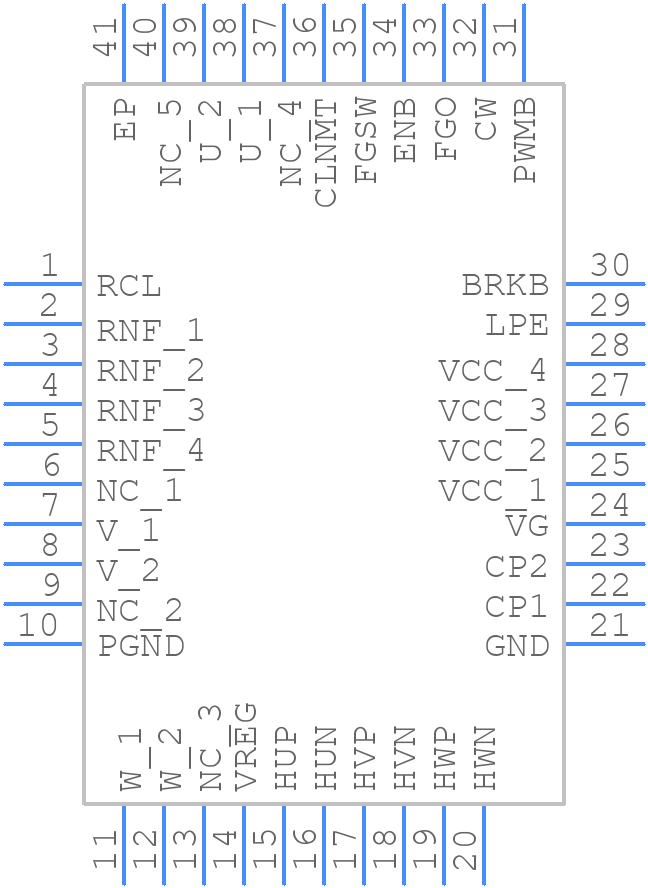

BD63005AMUV-E2 - ROHM Semiconductor

BD63005AMUV-E2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness and a thermal relief pattern around the thermal pad are also recommended.
• How do I ensure stable operation during power-up and power-down sequences?
  To ensure stable operation, ROHM recommends a soft-start circuit to limit the inrush current during power-up. Additionally, a capacitor should be placed between the VIN and GND pins to filter out noise and voltage spikes during power-down sequences.
• What is the maximum allowed voltage on the EN pin?
  The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the internal circuitry. It is recommended to use a voltage divider or a buffer circuit to ensure the EN pin voltage remains within the specified range.
• Can I use the BD63005AMUV-E2 in a high-temperature environment?
  While the BD63005AMUV-E2 is rated for operation up to 105°C, ROHM recommends derating the output current and voltage to ensure reliable operation in high-temperature environments. Consult the datasheet and ROHM's application notes for more information on thermal derating.
• How do I troubleshoot oscillations or instability issues in my design?
  To troubleshoot oscillations or instability issues, ROHM recommends checking the PCB layout for noise coupling, ensuring proper decoupling capacitors are used, and verifying the input and output voltage rails are within the specified range. Additionally, consult ROHM's application notes and technical support resources for guidance on stability analysis and troubleshooting.
