BD63441AFU-E2 - ROHM Semiconductor

Description: Motor / Motion / Ignition Controllers & Drivers 3-Phase Pre Driver 5.5-16V SSOP-C20

Download BD63441AFU-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

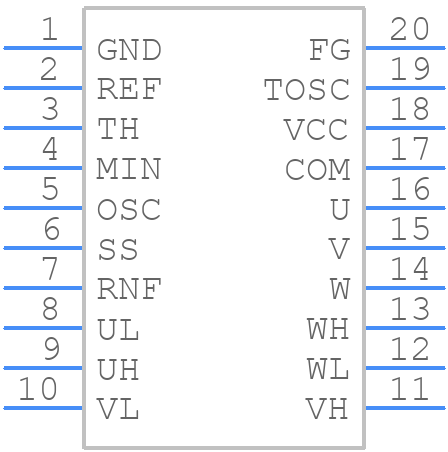

BD63441AFU-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD63441AFU-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BD63441AFU-E2-1
click to zoom
3D Models
BD63441AFU-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - BD63441AFU-E2-1
click to zoom

BD63441AFU-E2 Details

  • Manufacturer Part Number:

    BD63441AFU-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-19

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.01 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.35 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD63441AFU-E2 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the thermal pad of the IC to the ground plane. This helps to dissipate heat efficiently.
  • To ensure stable operation with a high-ESR output capacitor, it's recommended to add a small ceramic capacitor (e.g. 1uF) in parallel with the output capacitor to improve the overall ESR and reduce the risk of oscillation.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the IC.
  • While it's technically possible to use a lower value for the bootstrap capacitor, it's not recommended as it may affect the stability of the converter. The recommended value is 100nF, and using a lower value may cause the converter to oscillate or malfunction.
  • The power dissipation of the IC can be calculated using the formula: Pd = (Vin x Iin) + (Vout x Iout) + (Switching losses). The datasheet provides more information on how to calculate the switching losses.
