BD65491FV-E2 - ROHM Semiconductor

Description: 1-Channel Lens Driver for Single-lens Reflex Cameras

Download BD65491FV-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

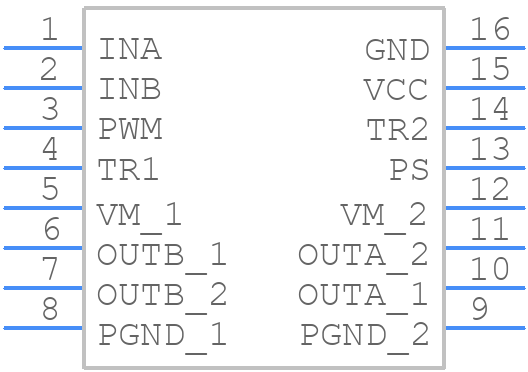

BD65491FV-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD65491FV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B16
click to zoom
3D Models
BD65491FV-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SSOP-B16
click to zoom

BD65491FV-E2 Details

  • Manufacturer Part Number:

    BD65491FV-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.45

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Supply Current-Max (Isup):

    1.3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD65491FV-E2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BD65491FV-E2 should include a solid ground plane, wide power traces, and thermal vias to dissipate heat. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, decoupling capacitors should be placed close to the IC, and the input capacitor should be rated for the maximum input voltage.
  • The maximum allowable ripple voltage on the input of the BD65491FV-E2 is 10% of the nominal input voltage. Exceeding this limit may affect the regulator's stability and output voltage regulation.
  • While it's possible to use a different inductor value, it's not recommended. The recommended inductor value is optimized for the BD65491FV-E2's internal compensation network. Using a different value may affect the regulator's stability and output voltage regulation.
  • The BD65491FV-E2 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it's still essential to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or heat.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD65491FV-E2 Overview

Use the download button to access the BD65491FV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD654, or try a keyword search, such as Motion Control Electronics
