BD68720EFV-E2 - ROHM Semiconductor

Description: Motor / Motion / Ignition Controllers & Drivers 36V 2A Output Stepping Motor Drvr

Download BD68720EFV-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

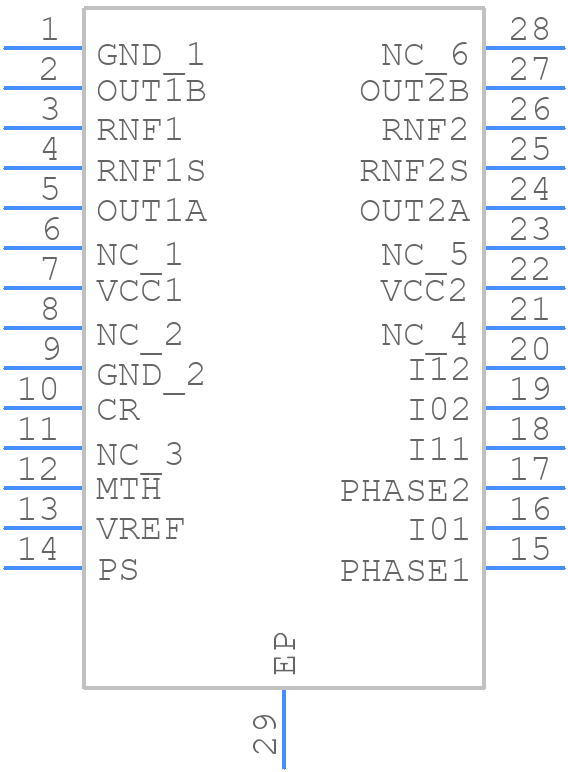

BD68720EFV-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD68720EFV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-B28-1
click to zoom
3D Models
BD68720EFV-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - HTSSOP-B28-1
click to zoom

BD68720EFV-E2 Details

  • Manufacturer Part Number:

    BD68720EFV-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-12-05

  • Manufacturer:

    ROHM Semiconductor

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    19 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

BD68720EFV-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
  • To ensure stable operation, ROHM recommends using an output capacitor with a capacitance value between 10uF to 100uF, and an ESR (Equivalent Series Resistance) of less than 10 mohm. Additionally, a 1uF to 10uF ceramic capacitor in parallel with the output capacitor can help improve stability.
  • ROHM recommends using a 1uF to 10uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. This helps to filter out noise and improve regulator stability.
  • ROHM recommends using a voltage supervisor or a reset IC to monitor the input voltage and reset the system in case of overvoltage or undervoltage conditions. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the regulator from voltage spikes and surges.
  • The maximum allowed voltage drop between the input and output pins is 2.5V. Exceeding this voltage drop may affect the regulator's performance and stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD68720EFV-E2 Overview

Use the download button to access the BD68720EFV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD687, or try a keyword search, such as Motion Control Electronics
