A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
To ensure the device is properly biased, make sure to follow the recommended voltage and current ratings, and use a stable voltage regulator to power the device. Also, ensure that the input and output capacitors are properly selected and placed close to the device.
When handling the device, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, and avoid touching the pins or leads. Also, avoid bending or flexing the leads, and handle the device by the body, not the leads.
To troubleshoot issues with the device, start by checking the power supply voltage and current, and ensure that the device is properly biased. Check for any signs of physical damage or overheating, and verify that the PCB layout and thermal design are correct. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the input and output capacitors should be selected based on the specific requirements of the application, such as voltage rating, capacitance value, and ESR. A general guideline is to use capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of at least 10uF.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD750L2EFJ-CE2 Overview

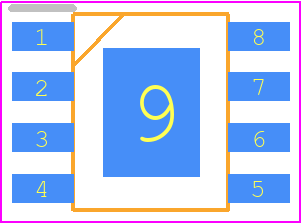

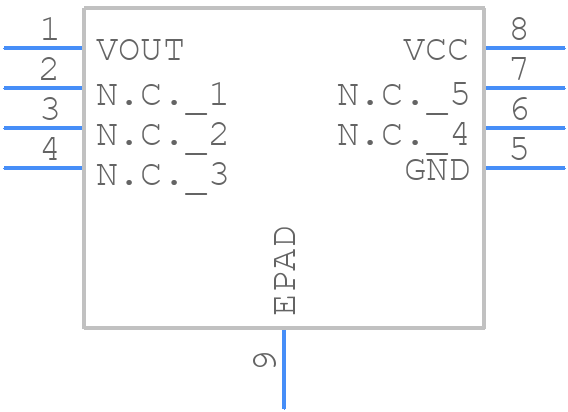

Use the download button to access the BD750L2EFJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD750,
or try a keyword search, such as Linear Regulator ICs
