BD7685FJ-LBE2 - ROHM Semiconductor

BD7685FJ-LBE2 Details

• Manufacturer Part Number:

  BD7685FJ-LBE2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

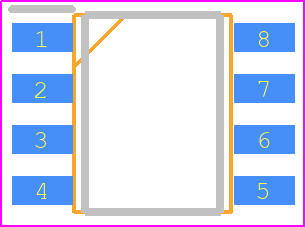

• Package Description:

  SOP-8

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  6.4

• Additional Feature:

  ALSO OPERATES IN PFM CONTROL TECHNIQUE

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  27.5 V

• Input Voltage-Min:

  15 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Nom:

  18 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE

• Seated Height-Max:

  1.65 mm

• Surface Mount:

  YES

• Switcher Configuration:

  SINGLE

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm
