BD78326EFJ-ME2 - ROHM Semiconductor

Description: Audio Amplifiers 1.2W MONAURAL SPKR AMP

Download BD78326EFJ-ME2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

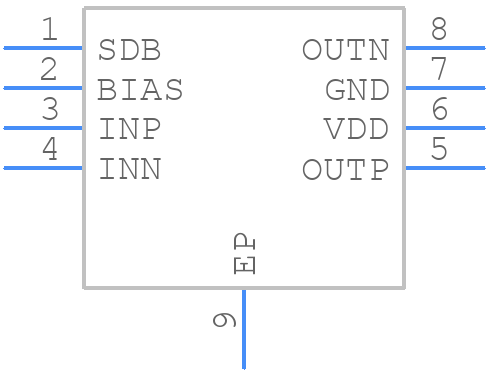

BD78326EFJ-ME2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

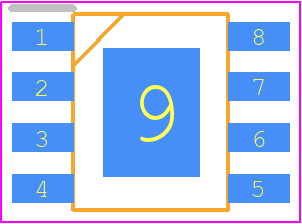

BD78326EFJ-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-4
click to zoom
3D Models
BD78326EFJ-ME2 - ROHM Semiconductor - 3D model - Small Outline Packages - HTSOP-J8-4
click to zoom

BD78326EFJ-ME2 Details

  • Manufacturer Part Number:

    BD78326EFJ-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD78326EFJ-ME2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
  • To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, the input voltage should be within the recommended range, and the output load should be within the specified current rating.
  • The maximum junction temperature (Tj) for the BD78326EFJ-ME2 is 150°C. Operating the device above this temperature can lead to reduced reliability and lifespan.
  • Yes, the BD78326EFJ-ME2 is qualified for automotive applications and can operate in high-temperature environments. However, it's essential to follow the recommended derating guidelines for temperature and ensure proper thermal management to prevent overheating.
  • The recommended input voltage range for the BD78326EFJ-ME2 is 6.5V to 18V. Operating the device outside this range may affect its performance, stability, and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD78326EFJ-ME2 Overview

Use the download button to access the BD78326EFJ-ME2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD783, or try a keyword search, such as Audio/Video Amplifiers
