BD80C0AHFP-CTR - ROHM Semiconductor

BD80C0AHFP-CTR Details

• Manufacturer Part Number:

  BD80C0AHFP-CTR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

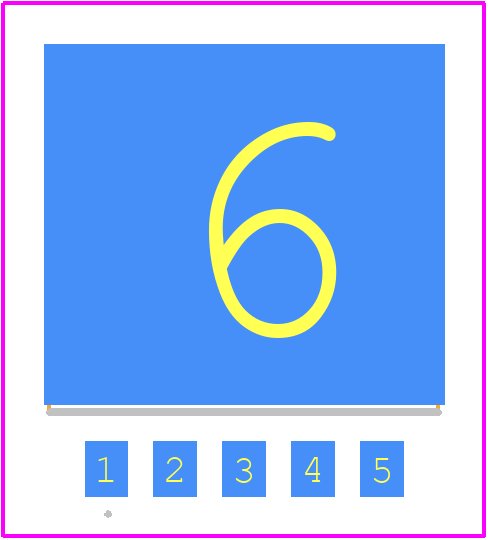

• Package Description:

  HRP-5

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  6.7

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.5 V

• Dropout Voltage1-Nom:

  0.3 V

• Input Voltage Absolute-Max:

  35 V

• Input Voltage-Max:

  26.5 V

• Input Voltage-Min:

  9 V

• JESD-30 Code:

  R-PSSO-G5

• Length:

  9.395 mm

• Line Regulation-Max:

  0.08%

• Load Regulation-Max:

  0.16%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  8.24 V

• Output Voltage1-Min:

  7.76 V

• Output Voltage1-Nom:

  8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SMSIP5H,.41,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, EMBOSSED

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.135 mm

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.72 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Voltage Tolerance-Max:

  3%

• Width:

  8 mm
