BD8389FV-ME2 - ROHM Semiconductor

Description: LED Lighting Drivers SERIAL-IN PARALLEL-OUT CONTROL

Download BD8389FV-ME2 Model

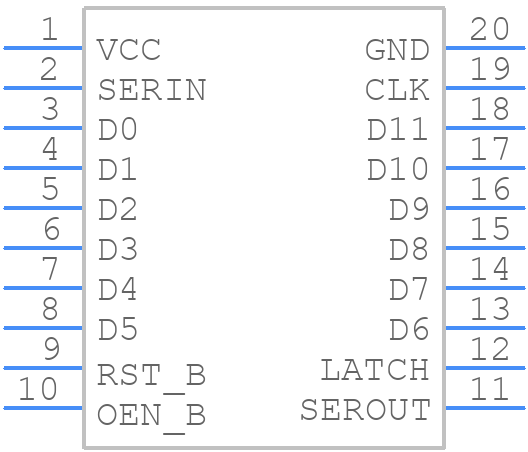

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD8389FV-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B20_2020
click to zoom
3D Models
BD8389FV-ME2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP-B20_2020
click to zoom

BD8389FV-ME2 Details

  • Manufacturer Part Number:

    BD8389FV-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • fmax-Min:

    1.25 MHz

BD8389FV-ME2 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad of the IC, and to use thermal vias to dissipate heat to the top layer. Additionally, keeping the thermal pad away from other components and traces can help reduce thermal resistance.
  • To ensure stable operation with a high-ESR output capacitor, it's recommended to add a small ceramic capacitor (e.g. 1uF) in parallel with the high-ESR capacitor to improve the overall ESR and reduce the risk of oscillation.
  • The maximum allowed voltage on the EN pin is VCC + 0.3V, which is 5.5V in the case of the BD8389FV-ME2. Exceeding this voltage may damage the internal circuitry.
  • While it's technically possible to use a lower value for the bootstrap capacitor, it's not recommended as it may affect the stability and reliability of the converter. The recommended value of 10nF is chosen to ensure proper operation and minimize the risk of oscillation.
  • The POR function is designed to reset the internal circuitry during power-up. To handle this, ensure that the input voltage rises slowly and monotonically, and that the EN pin is pulled high after the input voltage has reached a stable level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD8389FV-ME2 Overview

Use the download button to access the BD8389FV-ME2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD838, or try a keyword search, such as Display Drivers
