BD85506F-E2 - ROHM Semiconductor

Description: High Efficiency / Low Standby Power 2-Channel Secondary Side Synchronous Rectification Control IC

Download BD85506F-E2 Model

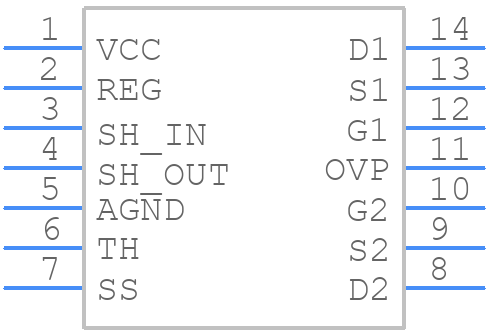

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD85506F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BD85506F-E2
click to zoom
3D Models
BD85506F-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BD85506F-E2
click to zoom

BD85506F-E2 Details

  • Manufacturer Part Number:

    BD85506F-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.7 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.71 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

BD85506F-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A 4-layer PCB with a solid ground plane is also recommended to reduce thermal resistance.
  • To ensure stable operation with a high-ESR output capacitor, ROHM recommends adding a 1-10nF ceramic capacitor in parallel with the output capacitor to reduce the overall ESR. Additionally, the output capacitor should be placed close to the IC to minimize parasitic inductance.
  • The maximum allowed voltage on the EN pin is 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the EN pin voltage does not exceed the IC's supply voltage (VIN) to prevent damage.
  • While the BD85506F-E2 is rated for operation up to 105°C, ROHM recommends derating the output current and power dissipation to ensure reliable operation in high-temperature environments. Consult ROHM's application notes for specific guidance.
  • To troubleshoot oscillations or instability issues, check the PCB layout for parasitic inductance and capacitance, ensure proper decoupling of the input and output capacitors, and verify that the output capacitor meets the recommended specifications. Consult ROHM's application notes and technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD85506F-E2 Overview

Use the download button to access the BD85506F-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD855, or try a keyword search, such as Power Management Circuits
