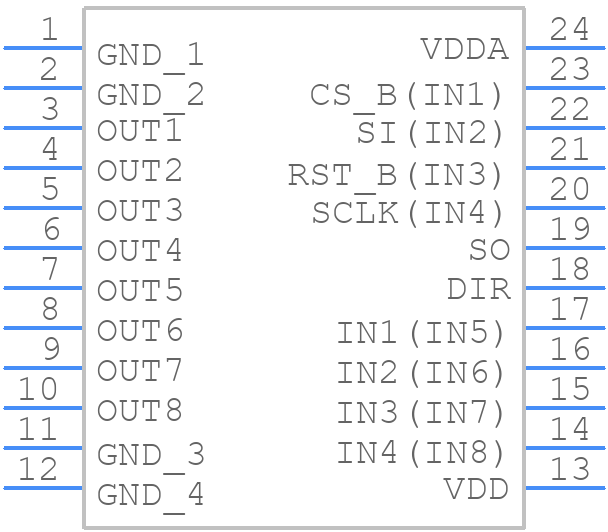

BD8LB600FS-CE2 - ROHM Semiconductor

BD8LB600FS-CE2 Details

• Manufacturer Part Number:

  BD8LB600FS-CE2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  10 X 7.80 MM, 2.10 MM HEIGHT, ROHS COMPLIANT, SSOP-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  7.15

• Built-in Protections:

  OVER CURRENT; OVER VOLTAGE; UNDER VOLTAGE

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G24

• Length:

  10 mm

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SINK

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP24,.3,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.1 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  50 µs

• Turn-on Time:

  50 µs

• Width:

  5.4 mm
