ROHM provides a recommended PCB layout in the application note AN1191, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, ripple current, and ESR requirements. ROHM recommends using a low-ESR ceramic capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 22uF.
The BD90610UEFJ-CE2 has an operating ambient temperature range of -40°C to +105°C, but the maximum ambient temperature for reliable operation is 85°C, as specified in the datasheet.
Yes, the BD90610UEFJ-CE2 is AEC-Q100 qualified and suitable for high-reliability and automotive applications, but additional testing and validation may be required to meet specific industry standards and requirements.
ROHM provides a troubleshooting guide in the application note AN1191, which covers common issues, such as output voltage deviation, current limiting, and overheating, along with recommended debugging steps and solutions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD90610UEFJ-CE2 Overview

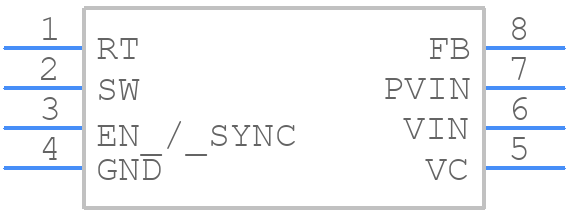

Use the download button to access the BD90610UEFJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD906,
or try a keyword search, such as Switching Regulator or Controllers
