BD9270F-E2 - ROHM Semiconductor

Description: Power Management Specialized - PMIC DC/AC Inverter Cntrl

Download BD9270F-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

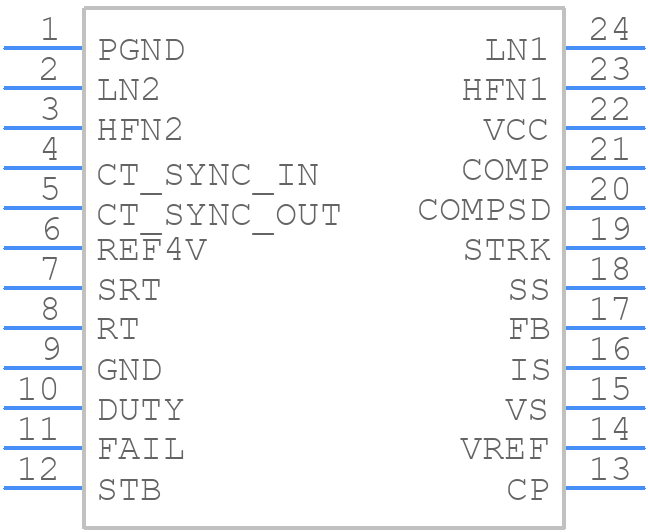

BD9270F-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

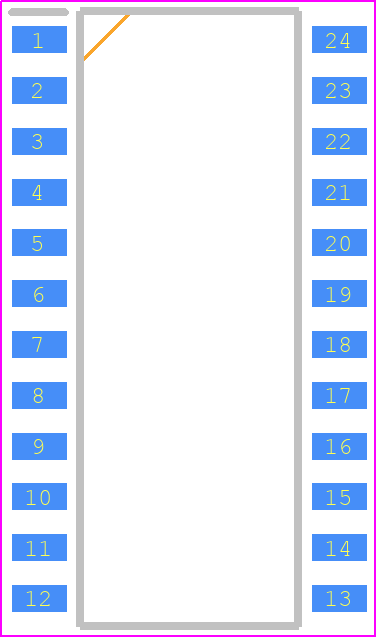

BD9270F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-24
click to zoom
3D Models
BD9270F-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SOP-24
click to zoom

BD9270F-E2 Details

  • Manufacturer Part Number:

    BD9270F-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    R-PDSO-G24

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    110 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

BD9270F-E2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BD9270F-E2 should ensure that the input and output capacitors are placed close to the IC, and the power traces are wide and short to minimize voltage drops. A 4-layer PCB with a solid ground plane is recommended.
  • To optimize the performance of the BD9270F-E2, ensure that the input voltage is within the recommended range, use a low-ESR output capacitor, and minimize the output voltage ripple by using a capacitor with a high ripple current rating.
  • The maximum ambient temperature for the BD9270F-E2 is 85°C, but it can be derated to 70°C for high-reliability applications.
  • Yes, the BD9270F-E2 is designed to withstand high vibrations and can be used in applications such as automotive and industrial control systems.
  • To ensure the reliability of the BD9270F-E2, follow the recommended operating conditions, use a suitable thermal design, and ensure that the IC is not subjected to excessive voltage or current stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD9270F-E2 Overview

Use the download button to access the BD9270F-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD927, or try a keyword search, such as Switching Regulator or Controllers
