6.20 X 5 MM, 1.71 MM HEIGHT, ROHS COMPLIANT, SOP-8
HTS Code:
8542.39.00.01
Manufacturer:
ROHM Semiconductor
YTEOL:
0
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDSO-G8
Length:
5 mm
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Qualification Status:
Not Qualified
Seated Height-Max:
1.71 mm
Supply Current-Max (Isup):
0.52 mA
Supply Voltage-Max (Vsup):
22 V
Supply Voltage-Min (Vsup):
12 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
4.4 mm
BD9582F-ME2 Frequently Asked Questions (FAQs)
ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A 4-layer PCB with a solid ground plane is also recommended to reduce thermal resistance.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values and types, as well as to provide a stable input voltage and a low-ESR output capacitor. Additionally, the output voltage should be set within the recommended range (0.8V to 3.3V).
The maximum allowed input voltage ripple is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the input voltage ripple below 1% of the nominal input voltage to ensure stable operation.
The BD9582F-ME2 is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to consider derating the device's performance at high temperatures.
The BD9582F-ME2 has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD9582F-ME2 Overview

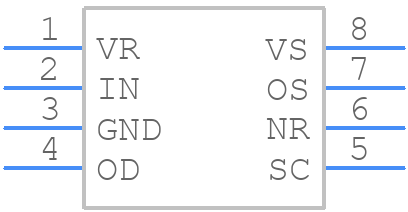

Use the download button to access the BD9582F-ME2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BD958,
or try a keyword search, such as Other Signal Circuits
