- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BDCH-15-272
- Part Number BDCH-15-272
- Manufacturer Mini-Circuits
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Other

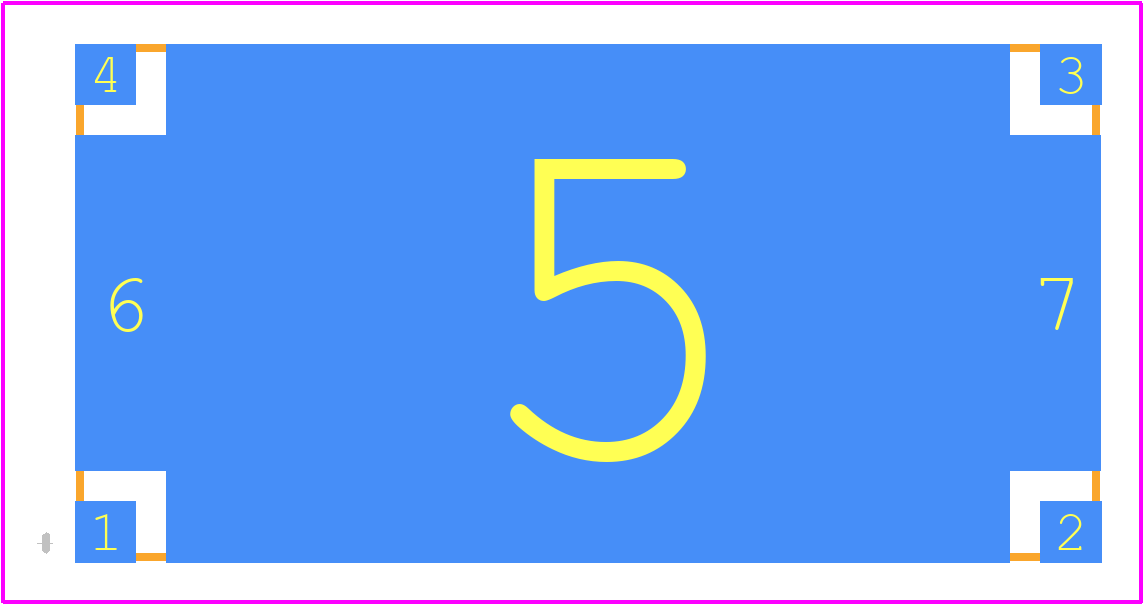

- Footprint Name Other - BDCH-15-272-4
- Released Date Nov 7, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BDCH-15-272 Details
-
Manufacturer Part Number:
BDCH-15-272
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2017-02-23
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7.44
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
51.76 dBm
-
Insertion Loss-Max:
0.35 dB
-
Mounting Feature:
SURFACE MOUNT
Trust Checks
Expert Contribution
System Verified
Community Approved
BDCH-15-272 Overview

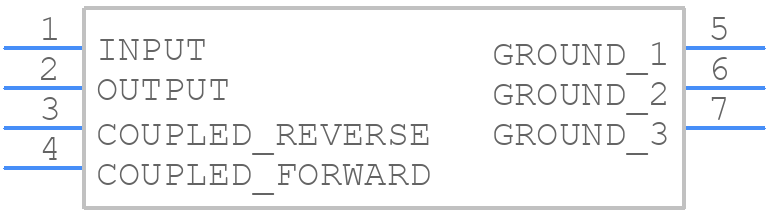

Use the download button to access the BDCH-15-272 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BDCH-,
or try a keyword search, such as RF/Microwave Couplers
