BDCN-14-342+ - Mini-Circuits

Description: Signal Conditioning BI-DIR COUP / SURF MT / RoHS

Download BDCN-14-342+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

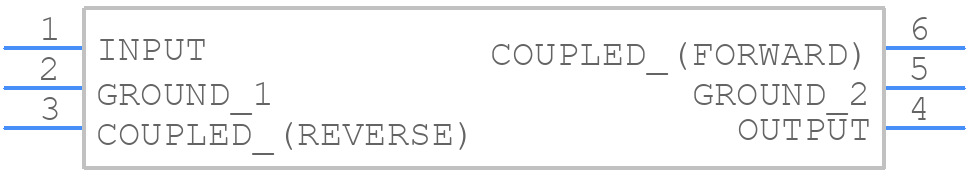

Symbol
BDCN-14-342+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
BDCN-14-342+ - Mini-Circuits PCB footprint - Other - Other - BDCN-14-342+-2
click to zoom
3D Models
BDCN-14-342+ - Mini-Circuits - 3D model - Other - BDCN-14-342+-2
click to zoom

BDCN-14-342+ Details

  • Manufacturer Part Number:

    BDCN-14-342+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FV1206-1, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.79

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    42.04 dBm

  • Insertion Loss-Max:

    0.6 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    3400 MHz

  • Operating Frequency-Min:

    1700 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    BI-DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.22

BDCN-14-342+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a general impedance matching guide in their application notes, but it's recommended to consult with an RF engineer or use simulation software like ADS or AWR to optimize the matching network for your specific application.
  • The maximum power handling of the BDCN-14-342+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • While the BDCN-14-342+ is a high-quality component, it's not specifically designed for high-reliability or space-grade applications. Mini-Circuits offers other products that are designed for these types of applications, such as their 'S' series components. It's recommended to consult with Mini-Circuits' sales team or application engineers to determine the best component for your specific requirements.
  • Troubleshooting common issues with the BDCN-14-342+ typically involves checking the PCB layout, soldering quality, and impedance matching. It's also essential to verify that the component is properly biased and that the input and output signals are within the recommended specifications. Mini-Circuits provides a troubleshooting guide in their application notes, and their application engineers can also provide additional support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BDCN-14-342+ Overview

Use the download button to access the BDCN-14-342+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BDCN-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
